GAS TURBINE EQUIPMENT


V84.2 Exhaust Silencer Upgrade

2022 Fall - (4) Units Schock is supplying turnkey new Exhaust Silencer panels, guides, brackets, and liner.
https://schock-mfg.com/gas-turbine-exhaust-silencer

FS7EA Exhaust System Upgrade

2023 Spring - Schock is providing (2) complete Exhaust Systems including exhaust silencer panels.

FS7F Exhaust Stack Upgrade

2022 Fall - Schock is providing (2) New Exhaust Vertical Stacks turnkey for a very important client.

FS7B Exhaust System

2022 Spring - Schock is designing and supplying turn-key (2) complete Exhaust Plenums, Stacks, and Silencers.

https://schock-mfg.com/gas-turbine-exhaust


FS7EA Exhaust System

2022 Spring - Schock is providing a new Exhaust Plenum Assembly, and Horizontal Silencer for an international customer.
https://schock-mfg.com/gas-turbine-exhaust

501FD Exhaust Silencer Upgrade

2022 Spring - Schock is designing and supplying Exhaust Silencer baffles, guides, and brackets for (2) 501FD Systems.
https://schock-mfg.com/gas-turbine-exhaust-silencer

FS7F Exhaust Silencer Upgrade

2022 Fall - Schock is providing new Exhaust Silencers including brackets, guides, and insulation/liner kit.

https://schock-mfg.com/gas-turbine-exhaust-silencer


FS7EA Exhaust Silencer Upgrade

2022 Spring - Schock provided (2) additional units of upgraded exhaust silencer panels turnkey.



FS7F Filter house Evaporative Cooler Modifications

2022 Fall - Schock is providing evaporative cooler modifications to enhance the incoming water system filtration.

FS7EA Filter House & Inlet System

2022 Spring - Schock is providing a complete custom designed Inlet and filter house system designed completely out of 304SS. This entire system includes existing support steel modifications, and intake system to the bell mouth of the GT. Schock is providing this system turn-key for our customer.



FS7E.03 Exhaust System

2022 Summer - Schock is providing a complete Exhaust system for a new GT.

https://schock-mfg.com/gas-turbine-exhaust

501D Exhaust System

2022 Spring - Schock is providing a complete 501D Exhaust System from the GT outlet EJ flange.

https://schock-mfg.com/gas-turbine-exhaust


FS6 Exhaust Plenum Assembly

2022 Spring - Schock is providing a complete Exhaust Plenum Assembly.

https://schock-mfg.com/gas-turbine-exhaust-plenum



FS7F Exhaust System

2022 Summer - Schock is providing (2) complete Exhaust Stacks including an upgraded transition liner system. Some earlier FS7F vertical transitions have experienced some longevity problems in the internal liner system. Schock has developed a liner design for these area's that operates with little thermal stress which extends the life significantly.

https://schock-mfg.com/gas-turbine-exhaust


FS6 Exhaust Stack

2022 Spring - Schock is supplying (2) complete Exhaust systems from the Plenum expansion joint outlet flange. These systems are internally insulated with our robust Schock liner system.

https://schock-mfg.com/gas-turbine-exhaust


FS7EA Exhaust Plenum Upgrade

2022 Spring - Schock designed, fabricated, and delivered (4) FS7EA Exhaust Plenum Assembles to a great Texas customer.

https://schock-mfg.com/gas-turbine-exhaust-plenum



V84.3 Exhaust Diffuser

2021 Fall - Schock performed turn-key liner repairs and upgrades for a combined cycle unit.

https://schock-mfg.com/gas-turbine-exhaust-diffuser


FS7EA Exhaust Plenum Upgrade

FS7EA Exhaust Plenum

2021 Spring - Schock stripped an existing entire exhaust plenum assembly to the casing plate, and installed a completely new liner system. This included flex seals, expansion joints, and bleed ports.

https://schock-mfg.com/gas-turbine-exhaust-plenum



FS7F Exhaust Liner Upgrade


2021 Fall - Schock repaired and upgraded liner in (2) FS7F Exhaust Stacks.

https://schock-mfg.com/gas-turbine-exhaust-liner-repair

FS7F Exhaust Silencer Upgrade

2021 Fall - Schock designed, fabricated and installed new bracket & guides as needed, as well as complete Exhaust Silencer Baffles. We carefully drafted a plan to access each silencer area, some of which consisted of pulling the upper exhaust stack.

FS5 Exhaust Upgrade

2021 Fall - Schock Installed a new Exhaust stack and silencer on an existing Frame 5 unit. We designed, fabricated in our Tulsa shop, and delivered the System in one large piece. The Exhaust Panels were also installed in the stack and secured for shipping. We upgraded the interior liner to a "cold" joint to the Exhaust Plenum.


FS7F Vertical Silencer removal

2021 Fall - Schock was made aware of some vertical exhaust silencers (4,500# each) that had significant cracking, buckling, and needed to be removed to prevent further damage. We mobilized to site in emergency fashion. Once scaffolding was in place, we supported the silencer and began cutting it away (overhead). The exterior 409SS frame and panel structure was cut into small pieces and lowered to the elbow floor to be discarded. (40+) trash bags of insulation was collected and also discarded. The silencer had to be removed in a limited space from the bottom up.


FS7EA Inlet System

2021 Spring - Schock delivered and assisted with the installation of (1) FS7EA Inlet Silencer and Transition Duct.


V84.2 Exhaust Silencer

V84.2 Exhaust Silencer

2021 Spring - Complete Stack Silencer upgrade including bracket, guides, Panels, and surrounding liner. (2) units, (14) days each.


FS7F Exhaust Diffuser Reline

2021 Spring - Schock incorporated many design improvements over the originally installed equipment. Together with expert TFA assistance and skilled site labor, we executed a complete upgrade in record time.


501D Exhaust Liner upgrade

501D Exhaust Liner upgrade

2021 Spring - Worked direct with client on tight budget to perform an emergency re-line due to legacy hazardous insulation being exposed. Prepared kit materials and shipped direct, and completed re-line of entire system in 3 weeks during Covid-19 quarantine.


FS7EA Exhaust Silencer Upgrade

2021 Spring - Schock inspected, thermally & acoustically measured and issued a thorough report. We then worked with the site to select a design option. Next we designed, fabricated, and installed. Our goal is to make your upgrade worry free. We do exactly what we say.


FS7EA Exhaust Plenum Upgrade

2021 Spring - Schock designed, delivered and provided field assistance for another complete Exhaust Plenum Assembly to a very happy Gulf customer.


FS7F Aft Diffuser Expansion Joint

2021 Spring - Schock designed, fabricated & installed the Aft Diffuser belt upgrade for a very important client.


501FD Exhaust Floor Reline

501FD Exhaust Floor Reline

2021 Spring - Schock was notified of this problem one day before a holiday weekend. We mobilized a material kit, and installed in 3 days over Easter weekend.


FS7EA Exhaust Silencer Upgrade

2020 Spring - New Silencer panels and bracket repairs in existing Exhaust system.


FS7B Exhaust Plenum Wall

FS7B Exhaust Plenum Wall

2021 Spring Schock custom designed the Turbine side lower Exhaust Plenum wall & installed due to customer budget constraints.


FS7EA Exhaust Silencer Upgrade

2020 Spring - Received Purchase Order for 1 stage of Silencer Panel upgrade for a GE FS7EA. 10/8/2020 BOL signed for delivery! ONE MONTH. This is not a one time miracle, Schock consistently meets or beats tight deadlines.

FS6 Exhaust Plenum Upgrade

FS6 Exhaust Plenum Upgrade

2020 Spring Schock delivered and provided TFA assistance for a complete Exhaust Plenum Assembly.

FS7EA Filter house Upgrade

2020 Spring - We worked direct with our customer to design a system that was easy to maintain, access, and inspect. This particular site had a blowing snow problem in the winter, and we were able to design to eliminate by elevating the lower intake hoods off of the ground level.

501D Exhaust System

501D Exhaust System

2020 Spring - Schock designed and delivered a redesigned Exhaust System to central KS. The outage to install was put on hold due to Covid 19, but ultimately was installed in the summer of 2020.

501F Vertical Silencer Upgrade Unit 3

2020 Fall - Schock designed. delivered, and provided Field assistance for an extensive redesign of our customers vertical Exhaust Silencer System. The design included stack liner repair, new silencer panel brackets, silencer panel guides, and 21 vertical Exhaust silencer baffles.

501F Vertical Silencer Upgrade Unit 4

501F Vertical Silencer Upgrade Unit 4

2020 Fall Schock designed. delivered, and provided Field assistance for an extensive redesign of our customers vertical Exhaust Silencer System. The design included stack liner repair, new silencer panel brackets, silencer panel guides, and 21 vertical Exhaust silencer baffles.

FS7EA Exhaust Silencer Upgrade

2021 Spring - Schock evaluated our customers current failing design. These were another case of complete structural-thermal failure of the exhaust panel frame and skin entirely. After the initial inspection, we measured the current site noise, and offered some different acoustic options. Once awarded, we began fabricating the baffles in late 2020 and installed (2) units in the Spring of 2021. The remaining (2) units will be installed in the Spring of 2022


GE FS7F.05 Exhaust System Upgrade

2020 Fall - This project started with a complete equipment inspection, evaluation, and report. The entire liner and silencing systems were in advanced failure. Schock redesigned these systems, and supplied materials with detailed demo/installation plan.


FS5 Exhaust Plenum Upgrade

2019 Schock Designed, fabricated, and shipped a FS5 Exhaust Plenum Assembly to an offshore client in 10 weeks.

FS7EA Exhaust Liner Repairs

FS7EA Exhaust Liner Repairs

2019 Fall - We evaluated and repaired multiple units to eliminate insulation degradation, and extend the Exhaust System remaining life.

501F Vertical Silencer Upgrade Unit 2

2019 Fall - Schock designed. delivered, and provided Field assistance for an extensive redesign of our customers vertical Exhaust Silencer System. The design included stack liner repair, new silencer panel brackets, silencer panel guides, and 21 vertical Exhaust silencer baffles.

501F Vertical Silencer Upgrade Unit 2-4

2019 Schock designed. delivered, and provided Field assistance for an extensive redesign of our customers vertical Exhaust Silencer System. The design included stack liner repair, new silencer panel brackets, silencer panel guides, and 21 vertical Exhaust silencer baffles.

FS7EA Exhaust Silencer Upgrade

2019 Spring - Schock Evaluated the customers current failing design. We developed a acoustic design to improve performance and keep overall cost down. Once installation was complete (one week per unit) the exhaust sound omission was measured and proven to exceed our customers expectations.

FS6 Exhaust Plenum


FS6 Exhaust Plenum

2019 Spring - Another Schock Exhaust Plenum Assembly shipped early and installed on time.



FS7B Intake System

2018 Fall  - Gas Turbine Equipment Intake System Replacement

FS6 Exhaust Plenum Assembly

FS6 Exhaust Plenum Assembly

2018 Spring - Complete replacement including the Gas turbine equipment Exhaust Plenum, Wing, Cowl, and Expansion Joint

FS5 Exhaust Plenum Assembly

2018 Fall - Gas Turbine Equipment Exhaust Plenum assembly for an international client. Short cycle project shipped on time.

FS7B Exhaust System

FS7B Exhaust System

2018 - Complete Gas Turbine equipment 7B system including the Plenum, Wing, Cowl, EJ assemblies and the Exhaust Stack and Silencers. Upgraded the liner and silencing systems and delivered on time.

501FD3 Exhaust Silencer upgrade

2018 Spring - Challenging cycle project. Designed, delivered, and provided Technical assistance for the stack removal, baffle removal, and re-installation of NEW Gas Turbine equipment Exhaust silencer baffles in 66 total days. The installation time for unit #1 was (6) days, and unit #2 (5) days.

7FA Exhaust Silencer Upgrade

7FA Exhaust Silencer Upgrade

2018 Fall - Schock provided our customer with a clever design, and installation technique to keep cost low. We replaced all Gas Turbine equipment Exhaust Silencer baffles, and redesigned the floor system to support during the outage.




FS7B Enclosure Doors

FS7B Enclosure Doors

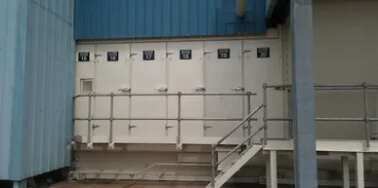

2017 Fall - Supplied (26) total Enclosure Doors for Generator and Turbine compartments x (4) Units. Schock custom designed, and manufactured each door to actual enclosure opening size (they are different!)
