Gas Turbine Design

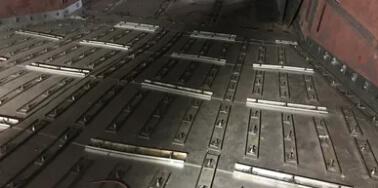

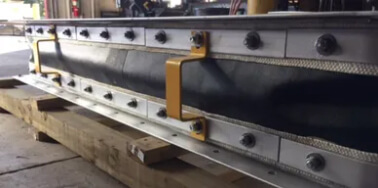

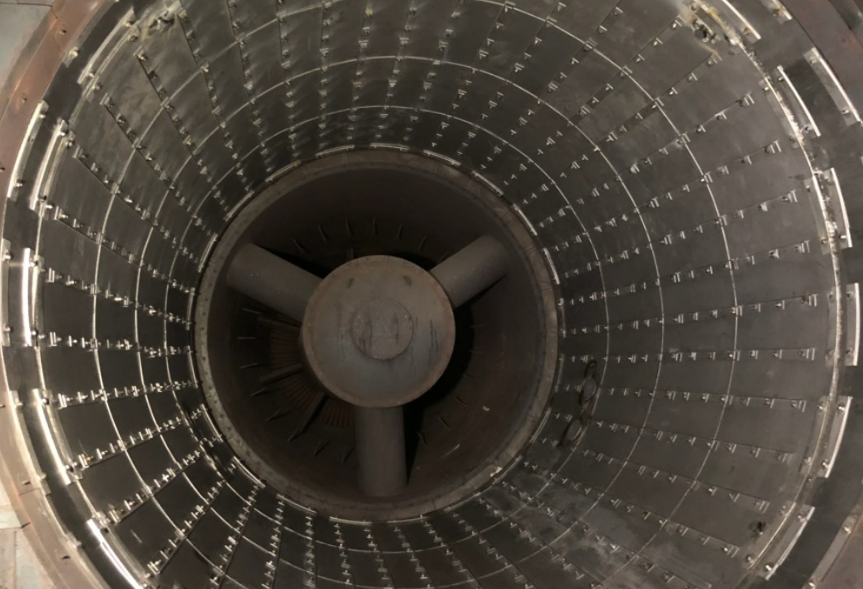

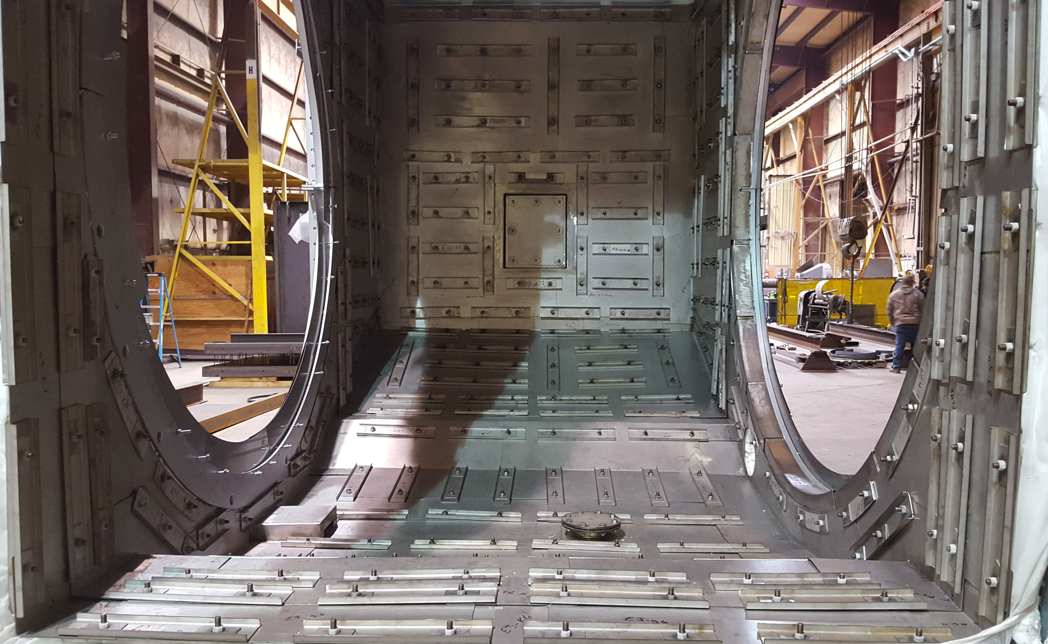

The Gas Turbine Exhaust System design starts with the desired overall system pressure drop and acoustic attenuation. Once the system is geometrically designed, we incorporate access areas for inspection, testing ports, expansion joints for overall thermal expansion. We then design our thermal insulation systems which are protected by our class leading liners systems. While Schock has liner system standards, we look to each area of the system to determine which liner system we will apply. All of which are designed to properly protect the insulation for decades encountering thermal movement, turbulent flow, weather, vibration, and others.
